scissor lift tables



      Mobile Scissor Lift Tables



all models feature ...

  • Heavy duty steel construction

  • Four casters (two fixed, two swivel)

  • Automatic overload relief valve

  • Top of stroke by-pass valve

  • Foot brake on two wheels

  • Maintenance lock bars

  • Polyurethane tyred wheels

  • Wheel foot protectors

  • Foot pump raise - hand lower

  • Electric model uses push buttons

  • EN1757-3 conforming

  • CE certified



"ergo-lt15-scissor lift table"



Light weight mobile lift table

A really convenient scissor table which will carry a hefty 150kg payload yet weighs only 45kg so it's very light and easy to use. Perfect for the stationery room, for unloading vans, estate cars and trucks, and extending machine work surfaces etc.

Model ERGOLT15
Capacity kg 150
Lowered height mm 220
Raised height mm 720
Table size mm 700 x 450
Handle height mm 950
Pump strokes max 28
Wheel size mm 100
Weight kg 45

Model ERGO LT15  £199




manual mobile scissor lift table

Economy 300kg mobile lift tables

Manual operation

This is a manually operated mobile lift table which is raised and lowered by winding a handle. Suitable for precise lifting and can be left indefinitely at a selected height without the creep associated with hydraulic tables.

Model ERGO LT30 MAN
Capacity kg 300
Lowered height mm 450
Raised height mm 1100
Table size mm 950 x 600
Handle height mm none fitted
Turns to raise 75
Wheel size mm 125
Weight kg 60

Model ERGO LT30 MAN  £225




Medium weight mobile lift tables

These are a pair of real workhorse scissor tables suitable for hard use in production areas which require their greater 250kg or 500kg capacity. Popular for repair shops and order collation and internal movement in factories.

Model ERGO LT30 ERGO LT50
Capacity kg 300 500
Lowered height mm 340 340
Raised height mm 880 880
Table size mm 850 x 500 850 x 500
Handle height mm 990 990
Pump strokes max 26 26
Wheel size mm 125 125
Weight kg 78 82

Model ERGO LT30  £299

Model ERGO LT50  £349




ergo mobile double scissor lift table picture

Mobile double lift table

A high lifting scissor table with a hefty 350kg capacity at 1300mm high. Perfect for repair shops and anywhere the maximum lift height of single scissor tables is just not enough.

Model ERGO LT35D
Capacity kg 355
Lowered height mm 435
Raised height mm 1300
Table size mm 910 x 500
Handle height mm 975
Pump strokes max 53
Wheel size mm 125
Weight kg 105

Model ERGO LT35D  £399



electric scissor lift table

Electric high lift mobile lift table

A battery electric powered double lift table.  This beautifully engineered table takes all the effort out of pumping where repeated lifting is required such as in production areas or conveyor loading etc.  The price includes a top quality European electro/hydraulic pack and 70 a/hr battery complete with integral charger and mains cable.

Model ES30D
Capacity kg 300
Lowered height mm 495
Raised height mm 1600
Table size mm 1010 x 520
Handle height mm 1185
Lifts per charge 45
Lift speed 15 secs
Lower speed 15 secs
Weight kg 183

Model ES30D  £1299



electric scissor lift table

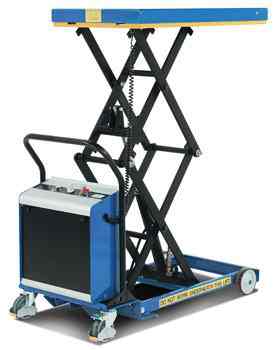

Electric mobile scissor lift table

A heavier duty battery electric powered double lift table.  Again this superbly engineered table takes all the effort out of pumping where repeated lifting is required such as in production areas or conveyor loading etc. The price includes a deep discharge battery complete with separate charger and mains cable.

Model 450SCE
Capacity kg 450
Lowered height mm 295
Raised height mm 1550
Table size mm 1030 x 610
Handle height mm 910
Lifts per charge 40
Lift speed approx 20 secs
Lower speed approx 20 secs
Weight kg 190

Model 450SCE  £1250



Other sizes of electric tables available please



 contact



Heavy Weight Mobile Lift Table

A full 750kg capacity up to 900mm high - this rugged table is the answer to your heavyweight loads.  Used by heavy plant workshops, stores and production areas this table offers unbeatable value for money.

Model ERGO LT75
Capacity kg 750
Lowered height mm 420
Raised height mm 900
Table size mm 1000 x 510
Handle height mm 1000
Pump strokes max 45
Wheel size mm 150
Weight kg 125

Model ERGO LT75  £435





Ultra Heavy Weight Mobile Lift Table

A full 1000kg capacity up to 990mm high - this table is the tough brute of the range.  We don't know of a cheaper way to safely lift a tonne to around a metre high.  This scissor lift table will take all the hard work you can throw at it.  No other model offers so much lifting capacity per pound invested.

Model ERGO LT100
Capacity kg 1000
Lowered height mm 380
Raised height mm 990
Table size mm 1015 x 510
Handle height mm 980
Pump strokes max 82
Wheel size mm 125
Weight kg 122

Model ERGO LT100  £489



lift and tilt table



Lift and Tilt scissor lift table

This table is ingenious. It is specially designed to allow an operator to feed and unload parts quickly and easily without lifting, bending, stretching, or reaching.  How may production jobs would this make easier?  At this price you can't afford to ignore it.

Model ES40
Capacity kg 400
Lowered height mm 300
Raised height mm 500-900/1560
Table size mm 830 x 520
Handle height mm 1130
Pump strokes max 50
Weight kg 123

Model BL40  £546

Also see our pallet tilters here



Colours may vary ... latest colours are blue, yellow and green ... from July 2006

To see our range of mains electric powered, static lift tables please Click Here

see the new     range here

This is just a small selection of the Scissor Tables we can offer.

Click here to contact contact Cliff or Keith  for further details









Castle Forklifts Ltd, Unit 15 Paynes Lane Industrial Estate, Rugby, Warwickshire CV21 2UH, U.K. Tel 44 (0) 1788 560531 Fax 44 (0) 1788 540943.

All trademarks and logos are acknowledged as the property of their owners.  All mobile scissor lift tables prices are ex works and exclude vat.  With ongoing development dimensions and specifications may differ from those shown.
