INDIVIDUAL SKATES WITH SWIVEL CASTORS - LTSC RANGE

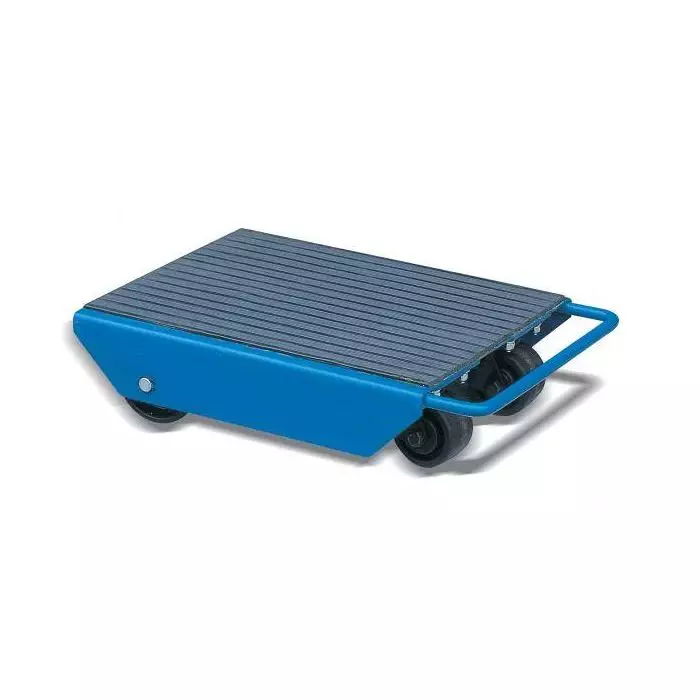

Individual Skates with Swivel Castors – LTSC Range
Product Overview
The LTSC Range of Individual Skates with Swivel Castors provides maximum manoeuvrability for moving heavy loads, especially in confined or complex spaces. Designed to rotate and change direction quickly, these skates are ideal for maintenance operations, plant relocations, or equipment positioning in tight areas. Their compact design, swivel mobility, and anti-slip features ensure ease of use and safe operation across a wide range of industrial applications.
Key Features
- Heavy-duty skate for loads up to 1000kg
- Designed to travel in any direction – perfect for tight spaces
- Available with either 2 swivel + 2 fixed castors or 4 swivel castors
- Anti-slip rubber top surface provides load protection and stability
- Maintenance-free sealed bearing system
- Compact and lightweight with integrated handle for easy transport
Technical Specification
Model | Capacity (kg) | Castor Configuration | Swivel Castors | Fixed Castors | Dimensions (L x W x H mm) | Weight (kg) |
LTSC102 | 1000 | 2 Swivel + 2 Fixed | 2 × Ø75 x 46 mm Nylon | 2 × Ø100 x 35 mm Nylon | 430 x 340 x 120 | 13 |
LTSC104 | 1000 | 4 Swivel | 4 × Ø75 x 46 mm Nylon | – | 430 x 340 x 120 | 14 |
Typical Applications
- Machine Installation: Perfect for rotating or steering heavy machinery into place during installation or relocation.
- Plant Maintenance: Enables smooth repositioning of generators, pumps, and large mechanical assemblies in confined areas.
- Industrial Warehousing: Easily transport bulky equipment around corners or into loading zones without needing multiple personnel.
- Facility Reorganisation: Allows for reconfiguring layouts with minimal downtime and no floor damage.
- Transport & Delivery: A reliable solution for getting large loads through narrow spaces and tight pathways where forklifts can’t operate.
Related Products
- Individual Fixed Skates: For straightforward linear movement of heavy loads in long, straight paths.
- Heavy Duty Skate Sets: Ideal for large machinery relocation with multiple linked skates and higher capacities.
- Rotating Machine Skates: Designed for 360° load rotation for ultra-precise placement work.
- Hydraulic Toe Jacks: Used to lift machinery and position it safely onto the skate units for transport.
Order Now
The LTSC Range of Skates with Swivel Castors delivers excellent manoeuvrability and support for heavy industrial loads. Choose the configuration that suits your handling task and enjoy precise, safe movement across your facility.
Call us today on 0800 458 8025 or email us directly to place your order or request more details.
Frequently Asked Questions
General Product Information
1. What are Individual Skates with Swivel Castors used for?
These skates are designed to move heavy machinery or large equipment smoothly and safely across level surfaces, with added flexibility thanks to swivel-mounted castors.
2. What makes swivel castor skates different from standard models?
Unlike fixed-direction skates, these feature rotating castors that allow for greater manoeuvrability — ideal for navigating corners or repositioning equipment with precision.
3. Are these skates suitable for factory or warehouse environments?
Yes, they are specifically designed for use on solid industrial floors, making them perfect for manufacturing facilities, workshops, and warehouses.
4. Are the skates supplied as a full set?
Yes, these units are provided as matched sets to ensure even weight distribution and optimal performance during load handling.
Usage and Operation
5. How do I use swivel castor skates effectively?
Place the skates under stable load points using lifting equipment such as a toe jack. Once positioned, the swivel castors allow controlled movement in multiple directions.
6. Do the castors lock in place?
Depending on the model, some may include brake mechanisms. Always ensure movement is well-controlled and monitored during operation, especially on inclines or slopes.
7. Can these be used on slightly uneven floors?
These skates perform best on flat, level surfaces. For uneven floors, consider using additional support tools or check with us for more suitable equipment.
Maintenance and Care
8. How should I maintain the swivel castors?
Keep the castors free from dust and debris, lubricate the swivel mechanisms periodically, and inspect for any signs of wear before each use.
9. Are spare parts or replacement castors available?
Yes, we offer replacement castors and components. Contact our support team with your order details for assistance with spares.
10. Is a maintenance manual included?
Yes, each skate set includes a guide outlining proper usage, safety instructions, and maintenance routines.
Purchasing and Delivery
11. How long does delivery take?
Standard delivery across mainland UK typically takes 2–3 working days. Please get in touch for urgent orders or special delivery requirements.
12. Do you offer trade or bulk order pricing?
Yes, we offer competitive pricing for trade accounts or bulk orders. Reach out to our sales team for a tailored quote based on your needs.
13. Can I return the product if unused?
Yes, we accept returns within 30 days of purchase as long as the item is unused and in original packaging. Please see our returns policy for details.
Safety and Regulations
14. Are these skates certified for industrial use?
Yes, they are manufactured to comply with UK industrial safety regulations, ensuring safe use in load-handling applications.
15. Are safety instructions included?
Yes, the product includes clear safety guidance on correct placement, handling procedures, and maintenance practices.
