HIGH LIFTING STATIC TABLES - HD/HT/MJ RANGE - FROM £3014

£3,014.00
SKU
HD/HT/MJ RANGE
In stock


Tables for high lifts and long goods. Table should be fixed into floor with bolted joints. Lifting height up to 4210 mm. Maintenance free pivot bushings. Large safety clearance between the scissors to avoid injuries. Lift cylinder with internal drainage. Safety valve to ensure safety in case of a hose burst. Low-noise power pack with built-in overload valve. Safety switch in top position. Moveable limit switch for adjusting full raised stop. 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit. Low-noise power pack with built in overload valve. Cable for 3-phase connection 380V/16 Ah. Approves to EN1570-1.



MODEL Type Capacity (kg) Stroke lenght Table area (LxW) Base frame size (LxW) Weight (kg) Lifting time to max height Lift motor (kW) Lifting height
HD1000 Double scissor 1000 1475 1300x820 1250x680 210 20-25 380V / 50HZ 1,5kW 305-1780
HD2000 Double scissor 2000 1420 1300x850 1255x785 295 25-30 380V / 50HZ 2,2kW 360-1780
HD4000 Double scissor 4000 1650 1700x1200 1600x930 520 30-35 380V / 50HZ 2,2kW 400-2050
HT1000 Triple scissor 1000 2530 1700x1000 1660x1000 450 45-50 380V / 50HZ 2,2kW 470-3000

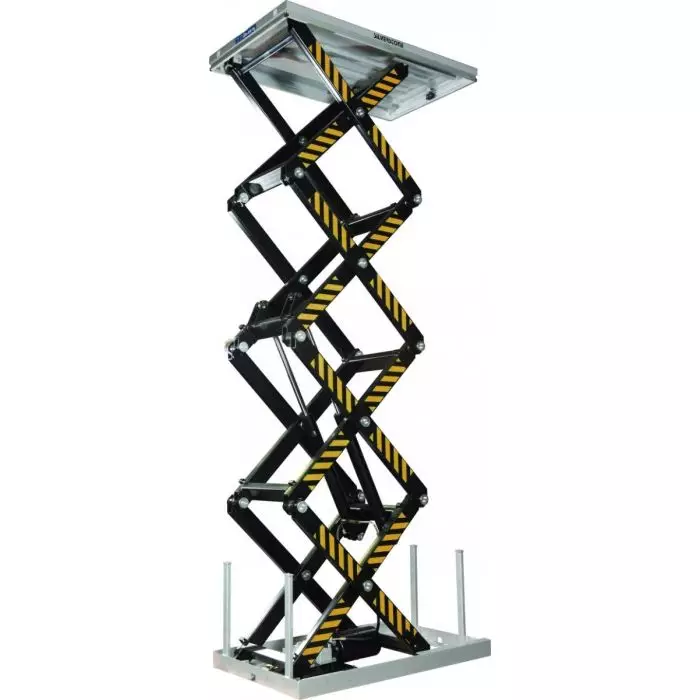

MJ-Q801 Four scissor 800 3504 1700x1000 1606x1010 858 60-65 380V/50HZ 2,2 kW 706-4210
