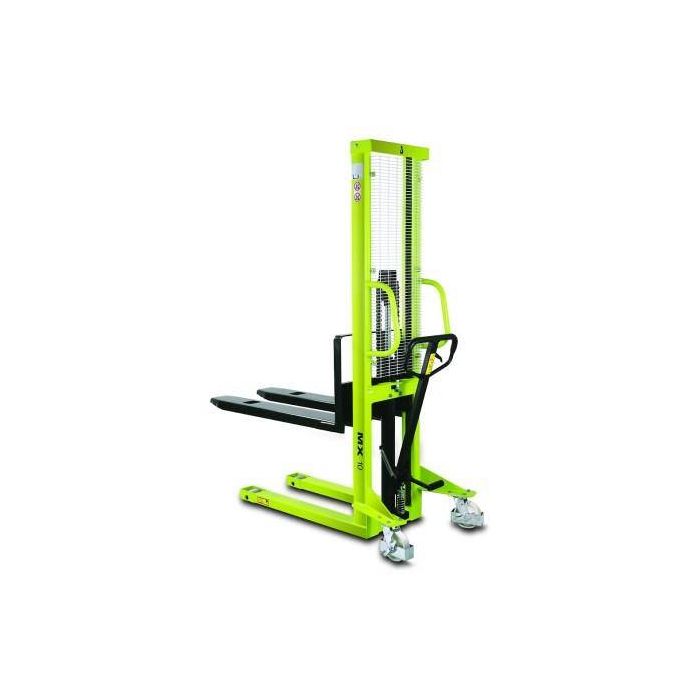

PRAMAC MANUAL STACKER WRAP-OVER - MX1016
Reinforced forks, steel pulley and forks precisely driven by rollers, are some of the main features of this stacker. The machine is also equipped with a foot pedal to lift forks, which considerably reduces the operators effort. Steel Pulley A big chain and a strong steel pulley ensure great resistance and reliability even working with the max. load capacity. Foot Brake The foot brake performs the parking brake function.
Pramac Manual Stacker Wrap-Over - MX1016
Product Overview
The Pramac Manual Stacker Wrap-Over - MX1016 is a robust and efficient solution for material handling tasks, designed to lift and transport loads up to 1,000 kg. Its reinforced forks and steel pulley ensure durability, while the foot pedal mechanism reduces operator effort during lifting operations. This stacker is ideal for various industrial and warehouse applications, providing a reliable means to handle standard euro pallets and other closed-bottom pallets.
Key Features
- Load Capacity: Capable of lifting loads up to 1,000 kg.
- Maximum Lift Height: Reaches up to 1,600 mm, accommodating various stacking requirements.
- Reinforced Forks: Ensures durability and reliability when handling heavy loads.
- Steel Pulley: Equipped with a robust steel pulley and large chain for enhanced resistance and longevity.
- Foot Pedal Operation: Features a foot pedal to lift forks, significantly reducing operator effort and enhancing efficiency.
- Foot Brake: Includes a foot brake that performs the parking brake function, ensuring safety during operation.
Specifications
- Model: MX1016
- Capacity: 1,000 kg
- Lift Height: 1,600 mm
- Lowered Fork Height: 90 mm
- Fork Length: 1,150 mm
- Weight: 210 kg
Applications
- Warehousing: Ideal for stacking and unstacking pallets in storage areas.
- Manufacturing: Assists in transporting materials between production lines.
- Retail: Suitable for moving merchandise in stockrooms and on the shop floor.
- Logistics: Facilitates the loading and unloading of delivery vehicles.
Related Products
- Manual Pallet Stacker with Adjustable Forks - LTKI500/1600A: Features adjustable forks and a 500 kg capacity, suitable for handling various open-bottom pallets.
- Pramac Semi-Electric Stacker - TX Range: Offers manual traction with electrohydraulic lifting, suitable for lifting very heavy loads safely.
- Straddle Pallet Stackers - LTKISA Range: Designed for handling closed-bottom pallets like UK standard blue pallets, with adjustable straddle legs for enhanced stability.
Order Now
Enhance your material handling efficiency with the Pramac Manual Stacker Wrap-Over - MX1016. Order today to experience reliable and versatile pallet handling in your operations.
Frequently Asked Questions
General Product Information
-
What is the maximum lifting capacity of the PRAMAC Manual Stacker MX1016?
- The PRAMAC Manual Stacker MX1016 has a maximum lifting capacity of 1,000 kg, making it suitable for handling standard euro pallets and other closed-bottom pallets.
-
What are the available lift heights for this stacker?
- The stacker offers a maximum lift height of 1,600 mm, accommodating various stacking requirements.
-
What are the dimensions of the stacker?
- Lowered Fork Height: 90 mm
- Fork Length: 1,150 mm
- Weight: 210 kg
-
What safety features are included with the stacker?
- The stacker is equipped with reinforced forks, a steel pulley, and forks precisely driven by rollers. It also features a foot pedal to lift the forks, reducing operator effort, and a foot brake for parking.
Usage and Operation
-
How is the stacker operated?
- The stacker is operated manually using a foot pedal to lift the forks and a hand-operated hydraulic system for lowering, providing ergonomic and efficient operation.
-
Is the stacker suitable for handling euro pallets?
- Yes, the stacker is designed to handle standard euro pallets and other closed-bottom pallets.
Maintenance and Care
- What maintenance is required for the stacker?
- Regular maintenance includes checking the hydraulic system for leaks, ensuring the foot brake is functioning correctly, and inspecting the wheels for wear and tear.
Purchasing and Delivery
-
What is the delivery time for the stacker?
- Delivery times are typically 2-3 business days, depending on your location.
Safety and Regulations
-
Is the stacker compliant with safety standards?
- Yes, the stacker is constructed from robust steel profiles and is designed to meet standard safety regulations for manual pallet handling equipment.
-
Are safety guidelines included with the stacker?
- Yes, the stacker comes with safety guidelines and is designed to ensure safe operation within warehouse environments.
