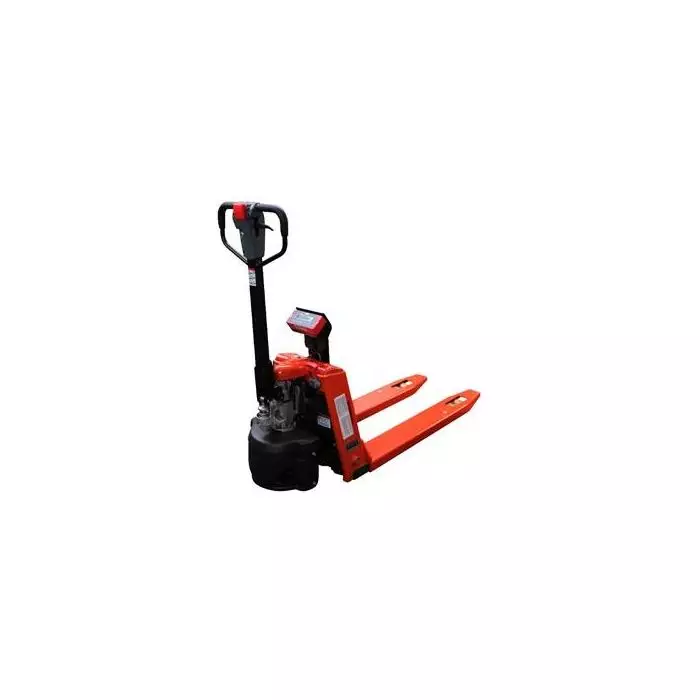

SEMI-ELECTRIC WEIGH SCALE PALLET TRUCK - ERGO1100

£3,676.00
SKU
ERGO1100
In stock


SEMI-ELECTRIC WEIGH SCALE PALLET TRUCK - ERGO1100

SEMI-ELECTRIC WEIGH SCALE PALLET TRUCK

STANDARD TRUCK SPECIFICATIONS

  • - Battery 24V / 30Ah Pb battery, including charger
  • - Autonomy battery for at least 1 hour continuous driving
  • - Driving wheel 230 x 61 mm
  • - Loading wheels 80 x 70 mm
  • - Driving motor 0,5 kW



STANDARD SCALE SPECIFICATIONS

  • - Capacity 1,500 kg
  • - Graduation 1kg till 1,500kg
  • - System tolerance 0,1 % of applied load
  • - Display 18 mm, LCD display
  • - Power consumption 6V – 36mA
  • - Power supply via 4 AA batteries
  • - Autonomy 1000 weighings of 3 minutes
  • - Keys 3 function keys, on/off key
  • - Protection class IP65
  • - Dimensions excl. bracket L x B x H = 60 x 77 x 182 mm



FUNCTIONS WITH 1100 INDICATOR

  • - Automatic and manual zero correction
  • - Gross/net weighing
  • - Automatic tare via push button
  • - Totalling with sequence number
  • - Error messages in display
  • - Auto shut off after 3 minutes



DIMENSIONS IN MM

  • - Fork length 1150
  • - Fork width 170
  • - Width over forks 550
  • - Lowered fork height 90
  • - Ground clearance 20
  • - Lifting height 200
  • - Total truck length 1600
  • - Truck width 560
  • - Truck height 680
  • - Height center display 820



BENEFITS

  • - Mobile-Scale truck with electric drive
  • - Standard scale functionality
  • - Moves loads > 750 kg easily
  • - Power supply truck via 24V / 30Ah battery pack
  • - Combines weighing and moving in one truck
  • - High accuracy


Call freephone 0800 458 8025 to find out more information.
