Liftmart Electric Powered Stair Walker Operation

liftmart stair walker ready to lift walker lifting up one step

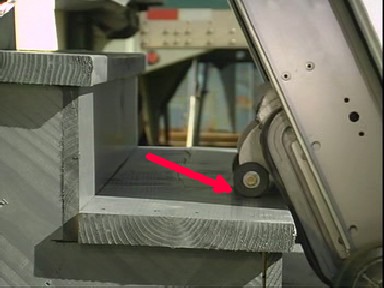

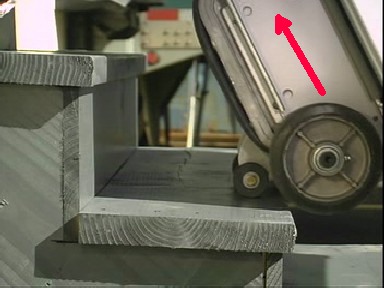

1. First the lift roller makes contact with the step above the wheels 2.  Then it lifts the whole Stair Walker up to the higher step level ..
wheel clears step overhang before arriving safely on step with walker pulled back against next step

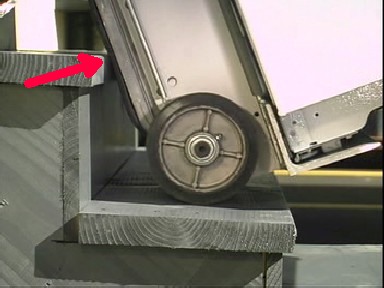

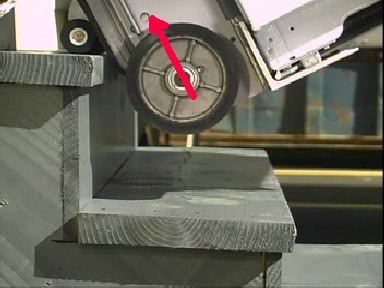

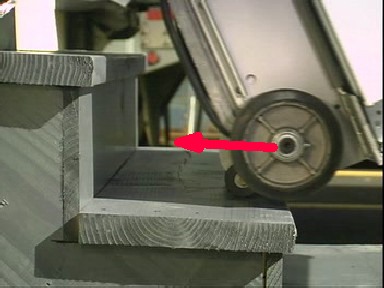

3. and lifts the wheel over the step overhang safely back to the centre of the step 4. The stair walker is then manually pulled back so the protective belts touch the next step.

walker going up the next step

5. The action is repeated until the top of the stairs

Coming down the stairs is the reverse of the above.

link to liftmart stair walker video
